RealWear Navigator 500
- An Android computer designed to be worn on the head
- Built-in 48MP camera with optical image stabilization
- The display is placed right in front of the user's eye
- Voice control via predefined commands
- Spill-proof (IP66) and 2m drop-proof (MIL-STD-810H)
- Dedicated for remote service, diagnostics, inspection, efficient documentation of procedures.
Description
REALWEAR NAVIGATOR 500
RealWear Navigatorᵀᴹ 500 is the next generation ruggedized assisted reality solution designed to engage, empower and elevate the modern frontline worker. Connect and collaborate with remote experts, follow digital workflows, visualize IoT data and much more. Safely reduce downtime, improve quality and employee productivity, while realizing significant ROI.
360° DEMO OF THE PRODUCT
ENHANCES REMOTE COLLABORATION
Frontline Workers can easily connect with remote experts in real-time, from anywhere, using optimized video collaboration applications. Enables frontline workers to get assistance from an expert remotely to resolve any complex issue.
HANDS FREE WEARABLE DIGITAL WORKFLOW DEVICES
Digital Workflow solutions provide visual instructions, checklists, data entry, and visual documentation of completed steps while on the go. Assisted reality devices enable digital workflow to reach workers when and where they need it—improving productivity and reducing operational errors.
REVOLUTIONARY MODULAR DESIGN

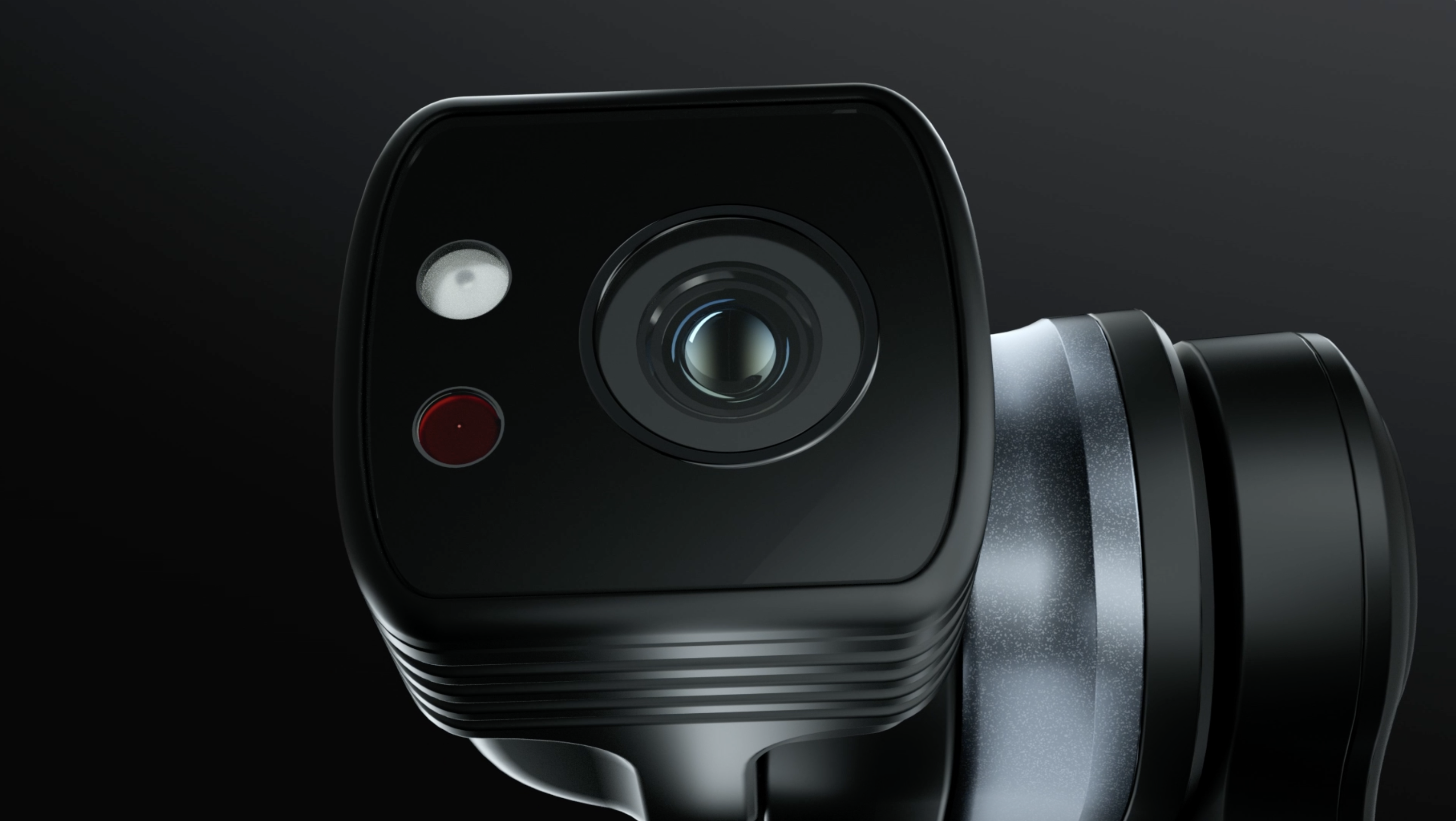

48MP CAMERA SENSOR
Stunning camera with an incredible low-light performance, enhanced zoom without sacrificing image quality and advanced video stabilization. The modular design allows the camera to be easily removed and swapped out with other accessories or camera cover, if environment does not permit. It features two modes.
Standard Mode delivers 12MP image resolution with 5 zoom levels. Great low light performance.
Telephoto Mode with enhanced zoom that delivers >6X zoom while still retaining HD quality (720p) or >4X zoom while retaining full HD quality (1080p).

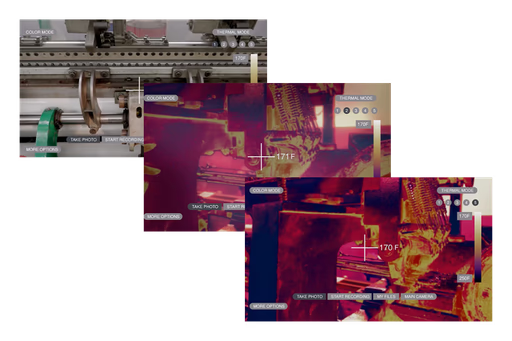

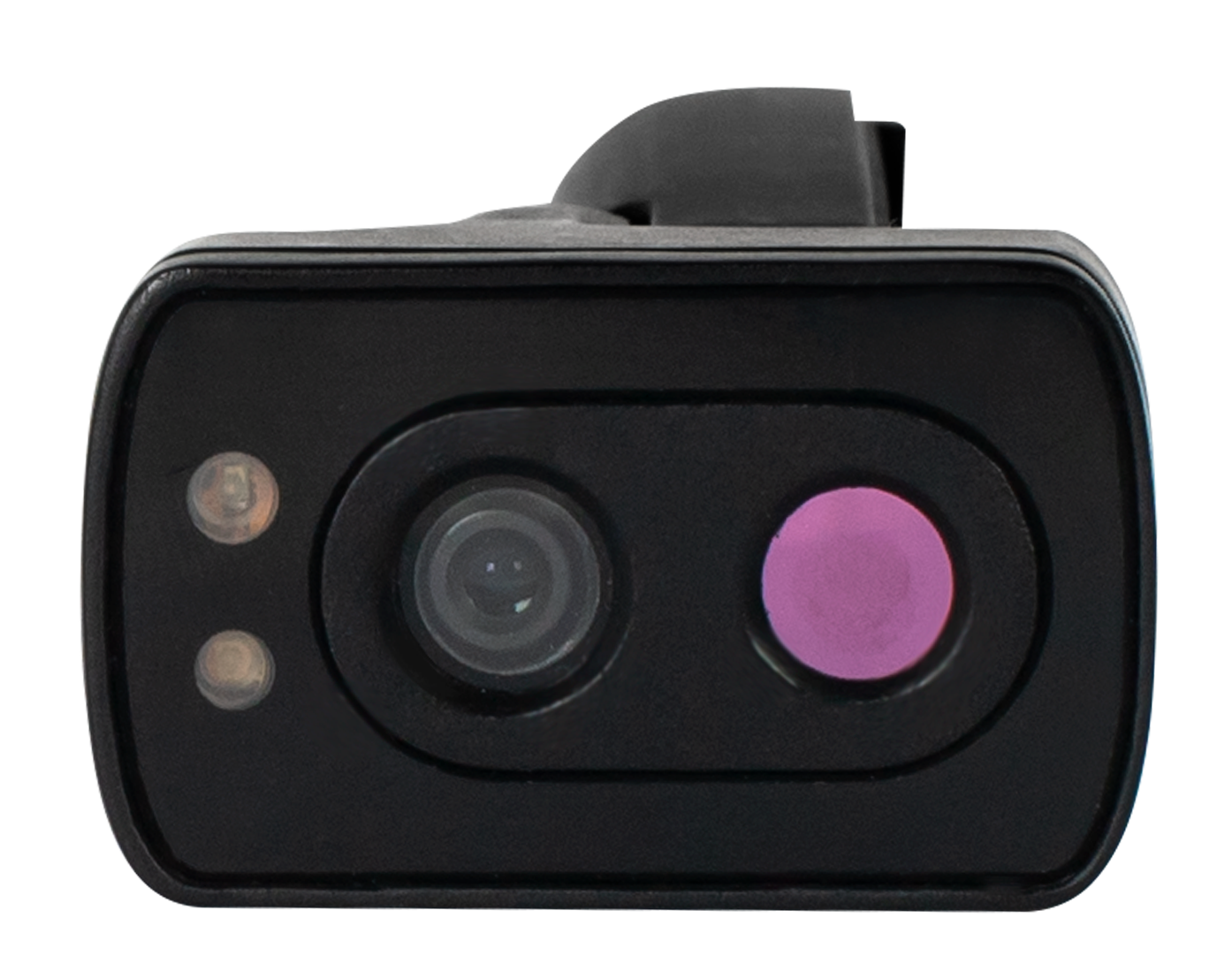

SEE THE INVISIBLE - THERMAL CAMERA MODULE*
Solve problems faster by adding fully hands-free thermal capability including MSX® Enhanced Image Mode, which adds visible light details to full thermal images for greater detail (*Thermal Camera Module is an optional accessory)
Basic parameters
| CPU |
2.0 GHz 8-core Qualcomm® Snapdragon™ 662 |
Water and Dust Resistance | IP66 |
| Display |
20° field-of-view, 24-bit color LCD, 0.32-inch diagonal, outdoor visible, WVGA (854X480) (appear like 7 inch tablet) |
Connectivity |
802.11 a/b/g/n/ac - 2.4 GHz i 5GHz |
| Battery |
2,600 mAh / 10.0 Wh Li-polymer, rechargeable, hot-swappable |
Certificates | MIL-STD-810H |
| SSD |
64GB internal storage / MicroSD slot (max card supported 512GB) |
Operating Temparature |
-20°C to +50°C |
| Drops | 2m drop resistant | Warranty | 12 months |
Technical Specification
- RealWear Navigator 500 Technical Data
| Display Type | 20° field-of-view, 24-bit color LCD, 0.32-inch diagonal, outdoor visible |
| Resolution | WVGA (854X480) |
| PPE Compatibility |
Works with many hard hats, protective eyewear, masks and more |
| Microphone | 4 digital microphones with active noise cancellation Accurate voice recognition in noise up to 100 dBA |
| Speaker | Internal 94 dBA loudspeaker |
| Camera Image | 48 MP Sensor, PDAF with LED flashlight |
| Camera Video | Up to 1080p @ 60fps, >6X zoom in HD, video stabilization. codecs: VP8, VP9, H.264, H.265 HEVC |
| Warranty | 1-Year Warranty |
| Extended Service & Support Plans | Available |
| Foresight Cloud Services |
Accelerates centralized deployment and management of devices |

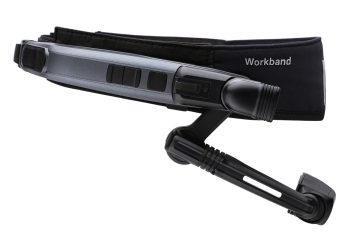

| Included accessories |
Workband, USB Type-C charging cable |
| Security | Qualcomm® Trusted Execution Environment, Crypto Engine, Secure Boot |
| Operating System |
Android 11 (AOSP) + WearHF™ hands-free interface + Enterprise features |
| Chipset | 2.0 GHz 8-core Qualcomm® Snapdragon™ 662 with Adreno 610 GPU - OpenGL® ES 3.2 & OpenCL™ 2.0 |
| Memory | 64GB internal storage / 4GB RAM / MicroSD slot (max card supported 512GB) |
| Languages & Dialects Supported | Chinese (Cantonese, Mandarin-Simplified and Traditional), Czech, Dutch, English (American, Australian, British), French, German, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Thai |
| Bluetooth | Bluetooth® 5.1 |
| Wi-Fi | 802.11 a/b/g/n/ac - 2.4 GHz and 5GHz |
| GPS and Location | • GPS, Glonass, BeiDou, Galileo, QZSS, and SBAS • NavIC support • Dual-Frequency GNSS (L1 + L5) • Qualcomm® Sensor-Assisted Positioning |
| IMU - Head Movement Tracking | 3 IMUs (including 3-axis accelerometers, gyroscopes, eCompass) |
| Capacity | 2,600 mAh / 10.0 Wh Li-polymer, rechargeable, hot-swappable |
| Weight | 9.5oz/270g |
| Ruggedization | IP66, MIL-STD-810H, 6.5 feet / 2-meter drop |
| Dedicated Buttons | Power button (with integrated fingerprint sensor), Programmable: action button, left button, right button |
| Ports | 1/8” / 3.5mm audio, 1 USB Type-C |
| Boom Arm | Adjusts six ways for most head sizes, left or right eye compatible, display can be moved out of way when not in use |
| Operating Temperature, Humidity | -4°F to +122°F / -20°C to +50°C, 5% to 95% relative humidity (non-condensing) |
| Included Applications | Document Navigator, Camera with Barcode Reader, Audio Recorder, Video Recorder, Webpage Viewer, Cloud Sync, Media Player, Calculator, Pedometer, Timer |
| Sign-in Options | Companion App, Voice Keyboard with secure mode |
