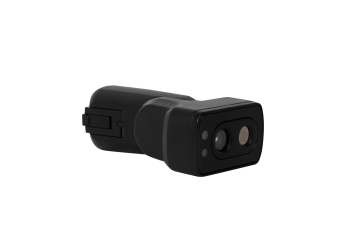

Thermal camera module for RealWear Navigator 500

Manufacturer: RealWear
Thermal camera operated with voice commands
  • Thermal Camera Module dedicated for wearable computer RealWear Navigator 500
  • Operation with voice commands and possibility to choose standard 48 MP camera
  • Radiometric pictures can be saved in RealWear Navigator 500
  • Compatibility with FLIR
  • Dedicated to outside work, in difficult weather conditions
  • 2 meters drop resistance
  • Dedicated to construction diagnostics, electrical and machine inspections
  • It reduce downtimes and allowed frontline workers to do the inspection


In stock
Go to B2B shop

This product is available only for authorised partners. If you want to make an order please contact us via e-mail or phone.


Technical Specification

  • Thermal Camera Technical Data

Thermal Sensor: FLIR Lepton® 3.5

Thermal Resolution: 160 x 120

Effective Frame Rate: 8.7Hz


57º (H), nominal

71º (D), nominal

Object Temperature Range: -20 to 400º C

Thermal Sensitivity (NETD): <50mK

Spectral Range: 8 to 14µm


High Gain Mode: Greater of +/- 5° C or 5% (typical)
Low Gain Mode: Greater of +/- 10° C or 10% (typical)

Visual Camera

Sensor: 48MP Sensor

Still Image: Up to 12MP

Video: Up to 1080p, 60fps
