RealWear Arc 3
Manufacturer: RealWear
new
Ruggedized Assisted Reality (aR) Wearable Tablet for Industry
Description
- Full-color HD micro-OLED display
- Fixed Double-camera: 50MP, 8MP wide-angle
- Live stream video between various locations
- IP54, 1-meter drop resistant
- Weighing just 179 g.
- Temperature Operating from -20°C to 45°C
- Recording video session for later reference
- Share screen
- Group Collaboration
|
This product is available for Registered RealWear Partners only. To purchase, kindly reach out to our sales team. |
Description
THE NEXT GENERATION INDUSTRIAL STRENGHT ASSISTED REALITY SOLUTION

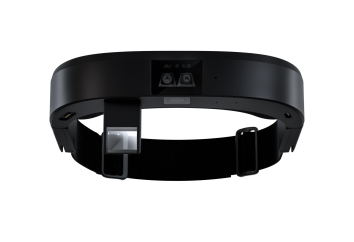

RealWear Arc 3
The RealWear Arc 3 features a see-through display that delivers sharp, detailed visuals while keeping users fully aware of their real-world environment.
Weighing 179 grams and equipped with a new dual-camera system, it is built for productivity with safety at its core.
Precision Display
Featuring a high clarity monocular display with double retina resolution, RealWear Arc 3 provides lifelike detail and outstanding color accuracy. It is purpose built to keep workers productive, aware, and in control.
Dual-Camera System
The RealWear Arc 3 features two forward-facing cameras that deliver stellar image quality, with a wide-angle lens for expansive views, a zoom lens for detailed close-ups, and an integrated flashlight for low-light environments.
Instant Alignment
A wide eyebox ensures quick, natural alignment for effortless viewing. The device is compatible with prescription glasses and Peltor-style headsets, and its modular design allows easy removal of straps and padding for comfort and flexibility.
Always ready with Arc Base
In combination with the Arc Base, the RealWear Arc 3 is always fully charged and ready to go in all situations.
The Arc Base can be placed on a shelf or mounted to a wall, allowing the Arc 3 to be ready when needed.
Basic parameters
| CPU |
Snapdragon™ 662 |
Water and Dust Resistance | IP54 |
| Display |
Micro-OLED, Full HD (1920x1080), DCI-P3, 22° FOV |
Connectivity |
Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.1 |
| Battery |
2000mAh, non-hot swappable |
Certificates | IP54, 1-meter drop |
| SSD |
64GB internal storage |
Operating Temparature |
-20°C to +45°C |
| Drops | 1m drop resistant | Warranty | 12 months |
Technical Specification
- RealWear Arc 3 Technical Data
| Operating System | Ari OS 2.0 (Android 13 based) |
| Chipset | Snapdragon 662 |
| Memory | 64GB/ 4GB RAM |
| Weight & Dimensions: | 179 grams/ 155 x 68 x 64 mm |
| Materials | LEXAN™ EXL9330 |
| Model name | A31G |
| Ports | USB Type-C |
| Temperature, Humidity | -20°C to 45°C/ Humidity: 10% to 80% (non-condensing) |
| Languages & Dialects Supported |
Chinese (Cantonese, Mandarin-Simplified and Traditional), Czech, Danish, Dutch, English (American, Australian, British, Indian), French, German, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Ukrainian, Spanish, Turkey, Thai |
| Sign-in Options | Companion App, Voice Keyboard with secure mode, Everykey |
| Display | |
| Display Technology | Micro-OLED, Full-Color/ DCI-P3, 95% |
| Resolution | Full HD, 1920x1080 SPR, 1080p monocular |
| FOV | 22° |
| See Through | Yes |
| Connectivity & Sensors | |
| Bluetooth | Bluetooth 5.1 (BLE + standard) |
| Wi-Fi | 802.11 a/b/g/n/ac - 2.4 GHz and 5GHz |
| Sensors | 3‑axis gyroscope and a 3‑axis accelerometer/ Barometer/ 3-Axis Magnetometer/Ambient light sensor/wear detection sensor/capacitive touchpad / Awareness Sensor 160° FOV, 2MP, B&W |
| Battery | |
| Capacity | 2000mAh/Lithium-polymer/Rechargeable/3.8V |
| Security | |
| Security | Qualcomm® Trusted Execution Environment, Crypto Engine, Secure Boot |
| Audio | |
| Microphone Count | 4 digital microphones with active noise cancellation. Accurate voice recognition in noise up to 100 dBA. |
| Technology | Noise reduction and echo cancellation |
| Speaker | Internal 85dbA loudspeaker on both sides. |
| Camera | |
| Wide-Angle Camera | OmniVision OV8856 — 120° FOV, 8 MP |
| Main Camera | Sony IMX882 — 82° FOV, 50 MP |
| Video Capabilities | 4K at 30fps, 1080p at 120fps |
| Supported Codecs | h264, hevc, mpeg4-sw, vp8, vp9, vc1, div4/5/6-sw, h263-sw, mpeg2 |
| Accessories | |
| Included | Headband, USB Type-C cable, Padding, Quick Start Guide, Protective EVA Case |
| Cloud Services | |
| Ari Cloud | Accelerates centralized deployment and managment of devices |
| Operating Environment | |
| Supported Eye Use | Right |
| Compatible With | Prescription/safety glasses, in-ear & over-ear hearing protection, in-ear & over-ear Bluetooth headphones |
