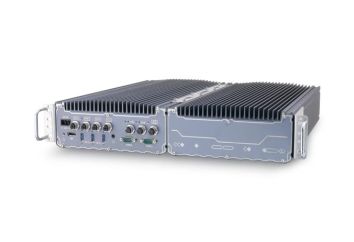

SEMIL-1300GC

Manufacturer: Neousys Technology
Wide-temperature Fanless GPU Computer supporting NVIDIA® Tesla T4/ Quadro P2200 GPU and Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU with M12 connectors
Description
  • Fanless GPU computer with NVIDIA® Tesla T4/ Quadro P2200
  • Guaranteed non-throttling GPU performance up to 62°C ambient
  • Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
  • Patented 2U 19" chassis for rack or wall-mount*
  • Four 802.3at Gigabit PoE+ ports via M12 X-coded connectors
  • VGA, USB 2.0 and COM ports via M12 A-coded connectors
  • 1x DisplayPort and 3x USB 3.1 Gen1 ports
  • 8V to 48V wide-range DC input with built-in ignition power control
  • CE, FCC and EN 50155 certified
Product out of stock
Go to B2B shop

Description

Basic parameters

  • Intel® Xeon E or Core i7/i5/i3 7th/ninth generation processor
  • Up to 64 GB of RAM
  • Fanless GPU with NVIDIA® Tesla T4 / Quadro P2200
  • VGA, USB 2.0 and COM ports with M12 A-coded connectors
  • CE, FCC and EN 50155 certified



SEMIL-1300GC series is the world's first wide-temperature fanless edge AI computer supporting NVIDIA® Tesla T4 or Quadro P2200 for demanding environments. Coupled with Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU, the system delivers excellent CPU and GPU performances for modern edge AI applications. SEMIL-1300GC series features Neousys' patented thermal system architecture* to guarantee -25°C to 70°C fanless operation in a rackmountable or wall-mountable 2U 19" enclosure.

SEMIL-1300GC series features an advanced passive cooling design to ensure operation in high-temperature environments without the GPU throttling. Compatible with a Tesla T4 or Quadro P2200 GPU, users can utilize the scalable GPU performance up to 8.1 TFLOPS in FP32 or 130 TOPS in INT8. It leverages M12 connectors for Gigabit PoE+, USB 2.0, VGA and COM ports to offer rugged cable connectivity. Other high-speed computer I/Os include DisplayPort, USB 3.1 Gen1, optional 10G Ethernet and storage interfaces such as M2. for NVMe SSD and SATA ports, making SEMIL-1300GC expandable and versatile.

The flourishing GPU-powered deep learning systems actualized real-time AI inference applications at the edge, where rough conditions are expected. Combining Tesla T4 or Quadro P2200, wide-temperature fanless design and rugged M12 connectors, the SEMIL-1300GC series reveals unprecedented possibilities of deploying AI to places that have yet to be reached.

Technical Specification

  SEMIL-1341GC SEMIL-1321GC
Processor Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
- Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T)
- i7-9700E, i7-9700TE, i7-8700, i7-8700T
- i5-9500E, i5-9500TE, i5-8500, i5-8500T
- i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset Intel® C246 platform controller hub
Graphics Integrated Intel® UHD Graphics 630
Acceleration GPU NVIDIA® Tesla T4 for AI inference NVIDIA® Quadro P2200 for AI inference
Memory Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM(two SODIMM sockets)
AMT Supports AMT 12.0
TPM Supports TPM 2.0
PoE+ 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded)
3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)
10 GbE Port(Build Option) Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded)**
Native Video Port 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
Series Port 2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded)
1x software-programmable RS-232/ 422/ 485 port (COM3, DB9)
1x RS-232 port (COM4, DB9)
USB 3x USB 3.1 Gen1
2x USB 2.0 (M12 A-coded)
1x USB 2.0 (internal)
Audio 1x 3.5 mm jack for mic-in and speaker-out
SATA HDD 2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
mSATA 2x full-size mSATA port (mux with mini-PCIe)
M.2 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
Mini PCI-E 2x full-size mini PCI Express sockets (mux with mSATA)
1x M.2 3042/ 3052 B key socket for selected M.2 4G/ 5G module
1x M.2 2242/ 2252 E key for selected WiFi module
DC Input 8V to 48V DC input
Ignition Control Built-in ignition power control
Dimension 440mm (W) x 310mm (D) x 86.5mm (H) (excl. rack-mount bracket)
Weight 12Kg
Mounting Rack-mounting and wall-mounting
Operating Temperature with 35W CPU
-25°C ~ 70°C ****
with >= 65W CPU
-25°C ~ 70°C ***/ **** (configured as 35W TDP mode)
-25°C ~ 50°C ***/ **** (configured as 65W TDP mode)
Storage Temperature -40°C ~85°C
Humidity 10%~90% , non-condensing
Vibration MIL-STD-810G, Method 514.7, Category 4
Shock MIL-STD-810G, Method 516.7, Procedure I
EMC EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035
