The R11 offers the latest Intel® 12th Generation processors with Intel® Iris® Xe graphics, delivering outstanding performance and visuals via its neat, compact form.
Plus, the high-speed data transmission capability of Thunderbolt™ 4, Intel® Wi-Fi 6E and Bluetooth® V5.2 provides smooth, congestion-free processing at all times.

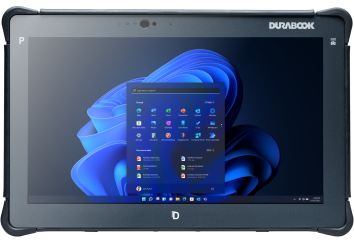

Durabook R11
Recommended
- 11.6” FHD DynaVue® SR display with 1000 nits
- 12th Generation Intel® Core™ Processor
- Long-Life Battery up to 15 hours
- Intel® Wi-Fi 6E AX211 & Bluetooth® V5.2
- Optional barcode, RFID & smart card reader
- 10-point capacitive multi-touch panel with four touch modes
- Only 1.2kg
Description
ENTERPRISE-CLASS PERFORMANCE
THIN, LIGHT AND STREAMLINED
Thin and lightweight, the R11 is only 20mm (0.79″) thick and just 1.2kg (2.65lb), making it the world’s most compact tablet in the fully-rugged class.
In addition, the R11’s smooth, streamlined exterior complements its rugged image for extra appeal.
SHARP INSIDE AND OUT
When your office includes rain, cold, bright sunlight and other environmental challenges, you need a device that’s built for purpose. The R11 features an 11.6” FHD (1920 x 1080) LCD with Durabook’s proprietary DynaVue® technology up to 1,000 nits for exceptional viewing even in direct sunlight. The R11 has also a 10-point capacitive multi-touch panel with four advanced touch modes, including stylus and glove regardless of work conditions.
VERSATILE DATA CAPTURE
The R11 features numerous integrated data-capture modules for multiple ways to retrieve and transmit information on the move. Optional add-ons include a barcode reader, RFID reader, smart card reader, serial port and RJ-45 port.
A 2MP front camera, 8MP rear camera, Wi-Fi 6E and Bluetooth® V5.2 also come as standard on this versatile tablet.
ROCK-SOLID DESIGN
The robust design of the R11 tablet equips field operatives with the confidence to do their jobs in even the harshest environments and temperatures.
Drop-tested from 4 feet, MIL-STD-810H and MIL-STD-461F certified, optional ANSI C1D2 certified and with an IP66 rating for maximum protection against dust, dirt, and water ingress, the R11 is trusted to perform.
POWER FOR THE LONG HAUL
Sustained battery power is critical for ensuring professional operatives remain productive in the field. That’s why the R11 offers an optional high-capacity battery lasting up to 14 hours without a charge.
Basic parameters
CPU | Intel® Core® 12th Gen. | Water and Dust Resistance | IP66 |
Display |
11.6" FHD IPS with touchscreen (optional 1000 nits sunlight readable) |
Connectivity |
Available with 4G and GPS |
Battery | Main Li-Ion, 11.1V, 3950mAh, 8.5 hours Optional long life Li-Ion 11.1V, 6900mAh, 15 hours |
Certificates | MIL-STD-810H, MIL-STD-461F |
SSD | NVMe PCIe SSD |
Operating Temparature |
-20°C to +60°C |
Drops | 1,2m drop resistant | Warranty | 36 months |
Technical Specification
- Durabook R11 Technical Data
Rugged Specs |
MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity) MIL-STD-461F certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility) ANSI/UL 121201, Class I, Division 2 |
Display | 11.6” FHD (1920 x 1080) Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus programmable function |
Operating System | Windows® 10/11 Pro 64-bit |
Processors | Intel® Core™ i7-1255U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores) Intel® Core™ i5-1235U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores) |
Memory | 1 slot of 8GB up to 32GB (4800MHz DDR5) |
Storage | 256GB NVMe PCIe SSD Optional 512GB/1TB PCIe SSD |
Graphics | Intel® Iris® Xe Graphics |
Camera | Integrated 2.0 MP front-facing camera Optional 8.0 MP auto-focus rear camera with flash |
Audio | Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 1 |
Keyboard & Input | 6 buttons (2 user-definable keys) |
I/O Ports | Thunderbolt 4 x 1 USB 3.2 Gen2 (type A) x 1 Micro HDMI x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 Docking connector (35-pin Pogo) x 1 Nano SIM card x 1 DC-In jack x 1 Optional 10/100/1000 Ethernet (RJ-45) x 12 Optional smart card reader x 12 Optional 1D/2D barcode reader x 1 Optional RF antenna pass-through for GPS and WWAN1 |
Expansion Slots | Optional RJ-45 x 1 or HF-RFID (NFC) or Smart Card Reader or MSR+Smart Card Reader or RJ-45/RS-232/Smart Card Reader2 |
Wireless & Communications | Intel® Wi-Fi 6E AX211 (802.11 ax) Bluetooth® V5.2 Optional dedicated GPS module (UBLOX-NEO-M8N)1 Optional GPS and 4G LTE multi-carrier mobile broadband1 Optional RF antenna pass-through for GPS and WWAN1 |
Security | Intel® vPro™ Technology TPM 2.0 NIST BIOS compliant Stealth mode Kensington lock Optional Night vision mode4 Optional smart card reader2 Optional HF-RFID (NFC) reader2 |
Power | AC adapter : 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 11.1V, 3950mAh, 8.5 hours3 Optional long life battery Li-Ion 11.1V, 6900mAh, 15 hours3 |
Dimension & Weight | 299 mm (L) x 192 mm (W) x 20 mm (H) 1.2 kg |
Warranty | 3-year limited warranty standard |
|
