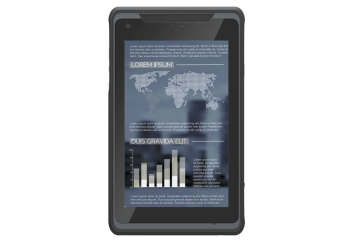

AIM-65

Manufacturer: Advantech
Industrial Grade Tablet | 8" WXGA 500 nits | IP65 | Android Enterprise Recommended
Description
  • Display: 8" WXGA 500 nits
  • Weight: 0.58 kg
  • Dimensions (W, D, H): 230 × 145 × 14 mm
  • Resistance: IP65, 1.2 m drop
  • Operating Temperature: –10°C to +50°C
  • RAM: 4 GB (optional 8 GB)
  • Memory: 64 GB eMMC, microSD (up to 2 TB)
  • System: Android
  • Guarantee: 24 months
Product out of stock
Product intended for professional use only

Description

AIM-65 – the compact powerhouse that handles fieldwork faster than your Wi-Fi

The AIM-65 is an 8" Industrial Grade tablet designed for mobile teams who need performance, portability, and durability – all in one rugged package. Weighing just 580 g and only 14 mm thick, it's built for field technicians, warehouse staff, logistics operators, and frontline workers who need to stay connected and efficient throughout the day.

The WXGA display (1280 × 800) offers 500 nits of brightness and is protected by Corning® Gorilla® Glass – making it readable in direct sunlight and resistant to scratches. With glove and rain-touch support, it works seamlessly even in rough environments.

Powered by a Qualcomm processor with up to 8 GB RAM and 64 GB eMMC storage (expandable via microSD up to 2 TB), the AIM-65 is also Android Enterprise Recommended – ensuring reliable security updates and compatibility with major MDM platforms.

Engineered for tough environments:

  • IP65 certified – sealed against dust and water spray

  • 1.2 m drop resistance – survives real-world fieldwork

  • Wide operating range from –10°C to +50°C – reliable from cold storage to summer job sites

Stay connected with Wi-Fi, Bluetooth, GPS, NFC, and optional LTE. The pogo-pin docking connector enables fast charging and peripheral expansion without extra cables – perfect for forklifts, carts, or service bays.

On the security side, the AIM-65 features:

  • FBE encryption

  • Google Play Protect

  • Remote lock & wipe via DeviceOn/iService

The AIM-65 is your compact, ultra-mobile digital workhorse – purpose-built to move with you, sync instantly, and withstand your toughest shifts.

Basic parameters

Processor Qualcomm platform Water & Dust Resistance IP65
Display 8" WXGA (1280 × 800), 500 nits, Gorilla Glass Connectivity Wi-Fi, Bluetooth, GPS, NFC, optional LTE
Battery Hot-swappable battery pack Certifications Android Enterprise Recommended
Storage 64 GB eMMC + microSD (up to 2 TB) Accessories Pogo-pin docking support
Drop Resistance 1.2 m drop protection Customization Optional barcode scanner, LAN+COM module

Technical Specification

CPU
  • Intel® Atom™ Quad-Core x5-Z8350 processor (1.44 GHz)
I/ O Ports
  • 1x Micro HDMI
  • 1x Micro USB 2.0
  • 1x Micro SIM
  • Further details in data sheet
Communication
  • WLAN IEEE 802.11 a/b/g/n/ac, Bluetooth V4.2, GPS, (4G LTE ); optional
  • Front- and rear camera, 1D/2D barcode scanner, NFC-/ RFID-reader; stylus; optional
  • Docking stations for vehicles and stationary applications; optional
Operating System
  • Windows 10 IOT Enterprise
  • Android 6.0
Display
  • Capacitive touchscreen
  • 10-Point Multi touch
Environment
  • IP protection class: IP65 (Front)
  • 4ft drop resistant
Certifiations
  • Certification marks *

  • We offer you an individual certification service.
    * Most common national approvals are available
