AIM-77S

new

Industrial Grade Tablet | 10.1" WUXGA 350 nits | IP54 | Android Enterprise Recommended
Description
  • Display: 10.1" IPS 350 nits
  • Weight: 1.12 kg
  • Dimensions (W, D, H): 271 x 22.4 x 183 mm
  • Resistance: IP54, 1.2 m drop
  • Operating Temperature: 0°C to 40°C
  • RAM: 4 GB
  • Memory: eMMC 64 GB, Micro SD up to 2 TB
  • System: Android
  • Guarantee: 24 months
Product out of stock
Product intended for professional use only

Description

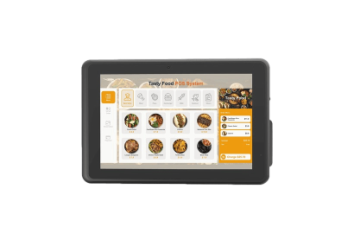

AIM-77S – 10.1″ Industrial Grade Tablet Built for Mobility and Reliability

The AIM-77S is a rugged 10.1-inch tablet built on a powerful quad-core ARM SoC and optimized for real-time inventory, retail, and POS applications. Certified as Android Enterprise Recommended, it ensures long-term platform support and regular security updates—perfect for enterprise deployments in logistics, warehouses, and retail environments.

Bright, Durable Display for On-the-Go Use
The 10.1" IPS display offers 1920 × 1200 resolution and 350 nits of brightness, delivering sharp visuals even under indoor lighting. Protected with Gorilla Glass, the screen resists scratches and supports accurate multi-touch input with gloves or styluses.

Lightweight and Built for Harsh Environments
Weighing only around 1.12 kg and protected to IP54 standard, the AIM-77S can handle dust, splashes, and accidental drops from up to 1.2 meters. It’s built for mobile teams operating across factory floors, shop aisles, or outdoor retail zones.

Connected Anywhere
Stay reliably online with dual-band Wi-Fi, Bluetooth, NFC, and optional gigabit Ethernet through the docking station. Mobile accessories like a shoulder strap or vehicle mount boost efficiency for workers on the move.

Purpose-Built I/O and Fast Charging
The USB-C port with PD 3.0 enables fast charging—up to 50% in 30 minutes—while the pogo-pin connector supports peripherals like 1D/2D scanners, magnetic stripe readers, and Bluetooth or USB printers, all without tangled cables.

Enterprise Security & Device Management
DeviceOn/iService platform allows IT teams to monitor, lock, or wipe the tablet remotely. Google Play Protect and kiosk mode ensure sensitive data stays secure—even in shared environments.

Reliable Long-Term Support
A 24-month standard warranty (extendable) and support for Android security patches ensure the AIM-77S remains a solid choice for long-term deployment in demanding industrial environments.

Basic parameters

Processor ARM-based SoC Water & Dust Resistance IP54
Display 10.1" IPS, 350 nits, Gorilla Glass Connectivity Wi-Fi, Bluetooth, NFC, Ethernet via docking station
Battery Fast charging via USB-C PD 3.0 Certifications Drop-tested from 1.2 m, working temp 0°C to 40°C
Storage 64 GB eMMC, Micro SD up to 2 TB Accessories Optional hand strap, docking station, pogo connector
Drop Resistance 1.2 m drop compliant Customization Modular accessories: MSR, 1D/2D scanner, printer

Technical Specification

  • Key Specifications
Platform & OS
  • SoC : Rockchip RK3568 – Quad-core Cortex-A55 @ 2.0 GHz
  • RAM : 4 GB LPDDR4x
  • OS : Android 12
Storage
  • 64 GB eMMC
  • microSD slot (up to 1 TB on request)
Display
  • 10.1″ IPS TFT LCD • 1280 × 800
  • Brightness : 350 nits
  • Corning® Gorilla® Glass 3 • 10-point P-CAP touch
Data Collection
  • Integrated 1D/2D barcode reader (model-dependent)
  • NFC 13.56 MHz – ISO 15693 / 14443 A/B, FeliCa
  • Sensors : Ambient-light, G-sensor, Gyroscope & e-Compass, Hall
Wireless
  • Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Bluetooth® 5.3
I/O Connectivity
  • 1 × USB-C 3.0 (charging + data)
  • 16-pin pogo dock – USB 3.0 & power
  • Audio combo jack • Digital microphone
Cameras
  • Front – 5 MP, fixed focus
  • Rear – 8 MP, autofocus
Power
  • Li-ion 7.7 V, 4440 mAh (34.2 Wh) embedded
  • Runtime ≈ 8 h (usage-dependent)
  • Fast charge – 50 % in 30 min • full in 2.5 h
  • Input : USB-C PD 3.0 15 V / 3 A • Dock 12 V / 3.75 A
Rugged Features
  • IP54 • drop-tested 75 cm (120 cm with rugged case)
  • Operating : 0 – 40 °C • Storage : –10 – 60 °C
  • Humidity : 90 % @ 40 °C (non-condensing)
Dimensions & Weight 271 × 180 × 17 mm • 885 g
Certifications FCC • CE • CB • UL • NCC • BSMI
