AIM-68H

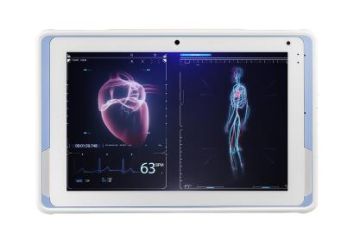

main product photo
Medical Grade Tablet | 10.1" FHD 800 nits | IP65
Description
  • Display: 10.1" FHD 800 nits
  • Weight: 1.1 kg
  • Dimensions: (W, D, H): 280 x 18.3 x 180.1 mm
  • Resistance: IEC60068-2-27, IEC60068-2-64, 1.2 m drop, IP65
  • Operating Temperature: from 0°C to 40°C
  • RAM: 8 GB
  • Memory: NVMe SSD 128GB/256GB
  • System: Windows
  • Guarantee: 24 months
Product out of stock
Product intended for professional use only
Go to B2B shop

main product photo

Description

AIM-68H – 10.1″ Fully-Rugged Medical / Industrial Tablet

1. Performance that Powers Service Apps & Edge AI

Driven by an Intel® Alder Lake-N CPU, fast RAM and a 128 / 256 GB NVMe SSD, the AIM-68H delivers smooth operation for:

  • service and diagnostic software,
  • edge-AI workloads,
  • industrial or medical control systems.

2. Readable in OR Lighting & Daylight

The 10.1″ WUXGA (1920 × 1200) panel offers 800 nits brightness with anti-glare and anti-fingerprint coatings. Corning® Gorilla® Glass adds scratch resistance.

3. Wi-Fi 6E & 5G-Ready Connectivity

  • Wi-Fi 6E & Bluetooth® for high-speed onsite data,
  • optional LTE / 5G for fully mobile deployments,
  • remote fleet control via DeviceOn / iService.

4. Certified Rugged for Medical Use

  • IP65 – sealed against dust and water jets,
  • IEC 60068-2-27 / -64 – shock & vibration tested,
  • drop-resistant from 1.2 m / 4 ft,
  • EN / UL 60601-1 – EMC safety in healthcare environments.

5. Ergonomics & Data Security

Weighs just ≈ 1.1 kg and measures 280 × 18.3 × 180.1 mm, perfect for bedside arms. An integrated 1D/2D scanner and NFC speed up patient or asset ID, while TPM 2.0 safeguards sensitive data.

6. Long-Term Service & Support

A standard 24-month warranty (extendable) plus Advantech long-life service contracts keep deployments reliable for years.

Basic parameters

Processor Intel Alder Lake-N Water & Dust Resistance IP65
Display 10.1″ WUXGA, 800 nits, anti-glare Connectivity Wi-Fi, Bluetooth, optional LTE/5G
Storage NVMe SSD 128 / 256 GB Certifications EN/UL 60601, IEC60068-2-27 / -2-64
Drop Resistance 1.2 m drop tested Security TPM 2.0, NFC, 1D/2D scanner
Dimensions & Weight 280 × 18.3 × 180.1 mm, ~1.1 kg Warranty 24 months, extendable

Technical Specification

  • Key Specifications
Operating System
  • Windows 10 IoT Enterprise
    (Windows 11 / Linux optional)
Processor & Memory
  • Intel® Pentium® N4200, 4 cores up to 2.5 GHz
  • 8 GB DDR5 RAM
Storage
  • M.2 NVMe SSD 128 GB (256 GB optional)
Display
  • 10.1″ IPS LCD, 1920 × 1200 (WUXGA)
  • Brightness 800 cd/m²
  • Corning® Gorilla® Glass 3
    Anti-Fingerprint & Anti-Glare
  • 10-point P-CAP touch • Modes: Normal, Glove
Communications
  • Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Bluetooth® 5.3
  • NFC 13.56 MHz – ISO 15693 / 14443 A/B, FeliCa
Standard I/O Ports
  • 1 × USB-C 3.1 (Charging & DP)
  • 1 × USB-A 3.1
  • 1 × Audio combo jack
Extended I/O
  • 14-pin pogo (USB 2.0, UART, 5 V / 1 A)
  • 16-pin docking pogo (USB 3.0, 12 V power)
Audio
  • 2 × Water-proof speakers (2 W)
  • Audio combo jack
Cameras
  • Rear – 13 MP AF + LED flash
  • Front – 5 MP fixed focus
Sensors
  • Ambient Light • E-Compass • G-Sensor • Gyroscope
Power
  • Smart battery – 46.31 Wh, LED gauge
    ≈ 5.5 h runtime • < 3 h charge
  • USB-C 20 V / 3.25 A • Dock 12 V / 2 A
Buttons
  • Power • Volume ± • 1 × Programmable key
Environmental
  • Operating: 0 – 40 °C / 32 – 104 °F
  • Storage: –20 – 60 °C / –4 – 140 °F
  • Drop 1.2 m • IEC 60068-2-27/-64 shock & vibration
  • IP65 ingress protection
Security
  • TPM 2.0 hardware security
Mechanical
  • Dimensions 280 × 18.3 × 180.1 mm (11 × 0.7 × 7.1 in)
  • Weight ≈ 1.1 kg / 2.4 lb
  • Colour White / Blue
Certifications & Warranty
  • FCC • CE • UKCA • IEC/EN/UL 60601-1 • EN 60601-1-2 • TELEC • VCCI • CCC • RCM • IC
  • 2-year standard warranty
