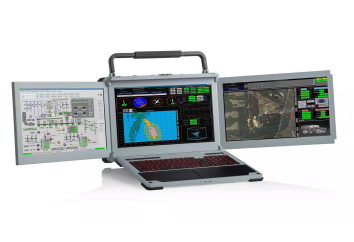

NotePAC III Pro V | 3x 17.3" FHD | MIL-STD-810G | MIL-STD-901E | MIL-STD-461F
Description
  • Display: 3× 17.3" FHD (1920 × 1080), 144 Hz
  • CPU: Intel® Xeon®
  • RAM: 32 GB DDR5 (optional up to 512 GB)
  • Ports: 3× HDMI, 4× 1 GbE, 1× 10 GbE Base-T
  • Battery: 6× Hot-swappable batteries, 10.8 V / 9,200 mAh
  • Dimensions & Weight: 347 × 442.5 × 196 mm, 14 kg (17 kg with batteries)
  • Standards: MIL-STD-810G, MIL-STD-901E, MIL-STD-461F
  • Warranty: 24 months, extension available
Product out of stock
Out of stock around 6-8 weeks
Product intended for professional use only

Description

Acme Portable – NotePAC III Pro V | 3x 17.3" FHD | MIL-STD-810G | MIL-STD-901E | MIL-STD-461F

Ultimate Mobile Command Center
The NotePAC III Pro V transforms instantly into a powerful portable workstation featuring three 17.3" FHD (1920 x 1080) displays with a 144 Hz refresh rate, delivering panoramic productivity at 5760 x 1080 px total resolution. Built for extreme conditions, it meets stringent military standards MIL-STD-810G, MIL-STD-901E, and MIL-STD-461F, making it resistant to shocks, vibrations, impacts, and electromagnetic interference—conditions that ordinary laptops can't withstand.

Performance & Reliability

  • Processor: Intel® Xeon®

  • RAM: 32 GB DDR5 (optional upgrade up to 512 GB)

  • Storage: Configurable rugged SSD options available

Connectivity without Compromise

  • Network: 4× 1 GbE ports and 1× 10 GbE Base-T

  • Display Outputs: 3× HDMI for external monitors or recorders

Power for Continuous Operation

  • Battery: 6× 10.8 V / 9,200 mAh (99 Wh) hot-swappable battery packs

  • Hot-swap: Batteries can be exchanged without shutting down the system, ensuring uninterrupted operation throughout entire shifts.

Rugged, Mobile, Mission-Ready

  • Dimensions: 347 × 443 × 196 mm

  • Weight: 14 kg (without batteries) / 17 kg (with full battery set)

  • Enclosure: Rugged, sealed casing for reliable operation in challenging environments

User Comfort & Ergonomics

  • Backlit keyboard ideal for low-light environments

  • Integrated precision touchpad for intuitive control

Warranty & Support

  • Standard 24-month warranty

  • Warranty extension options available

Ideal Applications
Designed specifically for military operations, film production teams, field engineering groups, and emergency-response teams that require full-scale workstation capabilities in remote or challenging locations where power sources and desk space are limited.

Basic parameters

Processor Intel® Xeon® Water & Dust Resistance Not rated
Display 3x 17.3" FHD (1920 × 1080), 144 Hz, optional touchscreen Connectivity Wi-Fi and Bluetooth, 4× 1 GbE, 1× 10 GbE Base-T
Battery 6× Hot-swappable batteries (10.8 V / 9,200 mAh / 99 Wh) Certifications MIL-STD-810G, MIL-STD-901E, MIL-STD-461F
Storage Configurable SSD storage, RAID options available Accessories Padded rolling transit case included
Drop resistance MIL-STD-810G compliant (shock, vibration) Customization Military-grade connectors, custom I/O ports

Technical Specification

Product NotePAC III Pro V
Chassis Color Light Gray
Display 3x 17.3" FHD 1920x1080
CPU Intel® Xeon® D-2183IT
Memory 32GB DDR5 RAM,
upgradable to 512GB+
Graphics Card ASPEED AST2500
OS Drive 1TB M.2 NVMe,
upgradable to 4 TB NVMe
Storage 4 standard removable 2.5" slots for up to 8TB each
Ports Quad LAN with Intel® Ethernet Controller I350-AM4,
Dual LAN with 10G SFP+ LAN via SoC,
Dual LAN with 10Gbase-T,

3x HDMI external clone
Battery 6x 10.8V, 9200MAH, 99WH
Optional Addons 6x 10.8V, 7,500mAh, 81Wh Batteries
Input 19VDC/31.6A
Output 19VDC
Charger Specs Charging voltage: 19V ± 1V,
Charging current: 13A ± 0.5A
Dimensions Chassis dimensions:
Height: 13.7" (347mm)
Width: 17.42" (442.5mm)
Depth: 7.72" (196mm)


Battery dimensions:
Height: 12.67" (322mm)
Width: 17.04" (433mm)
Depth: 2.71" (69mm)
Weight 30.9bs (14kg) without batteries
Optional battery pack: Additional 6.6lbs (3kg)
Expansion Slots PCIe x8, PCIe x16
Keyboard & Mouse Backlit keyboard, available in a variety of languages
Accessories USB Cable,
Power Cable,
DVD Driver
Quality ISO 9001
Customization Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.
