NotePAC II Pro V
new
- Display: 2× 17.3" FHD, optional UHD 4K (60 Hz)
- CPU: Intel® Xeon®
- RAM: 16 GB DDR5 (optional up to 32 GB)
- Ports: 3× HDMI, 4× 1 GbE, 2× 10 GbE Base-T
- Battery: Optional 6× Hot-swappable batteries
- Dimensions & Weight: 153 × 437 × 335 mm, 15 kg
- Standards: MIL-STD-810G, MIL-STD-901E, MIL-STD-461F
- Warranty: 24 months, extension available
Description

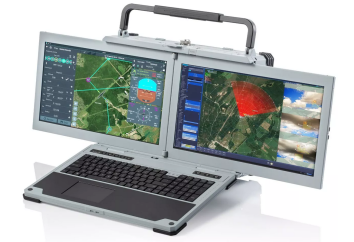

NotePAC II Pro V – Dual-Screen Rugged Laptop Built for Extreme Environments
The NotePAC II Pro V is a rugged dual-display laptop designed to deploy seamlessly in locations where standard workstations can't survive. Two 17.3" FHD displays (optional UHD 4K available) unfold within seconds, instantly providing an expansive, clear workspace perfect for data analytics, video editing, drone operation, or field control centers.
At the heart of the NotePAC II Pro V lies an Intel® Xeon® processor supported by up to 32 GB of high-speed DDR5 RAM, delivering unmatched performance. Its robust construction complies with military standards MIL-STD-810G, MIL-STD-901E, and MIL-STD-461F, ensuring the system withstands severe shock, vibration, and electromagnetic interference (EMI).
Connectivity Built for Every Mission:
-
3× HDMI ports for connecting external monitors or data-recording devices
-
4× 1 GbE ports plus dual 10 GbE Base-T connections for rapid, high-capacity networking
Non-Stop Operation with Hot-Swap Batteries:
-
Six hot-swappable 81 Wh battery packs allow continuous operation; batteries can be replaced without powering down, essential for prolonged field deployments.
Mobile and Mission-Ready:
-
Compact dimensions (153 × 437 × 335 mm) and a manageable weight of 15 kg (including batteries) facilitate transport in a single ruggedized case.
Designed for Operational Ergonomics:
-
Illuminated, full-sized keyboard ensures usability in low-light conditions
-
Precision integrated touchpad for intuitive, accurate input
Reliability You Can Trust:
-
Standard 24-month warranty, with optional extended coverage available
Whether deployed in field operations, onboard naval vessels, temporary film sets, or makeshift command centers, the NotePAC II Pro V transforms any location into a powerful dual-screen operational hub.
Basic parameters
Processor | Intel® Xeon® | Water & Dust Resistance | Not rated |
Display | 2× 17.3" FHD (1920 × 1080), optional UHD 4K | Connectivity | Wi-Fi, 4× 1 GbE, 2× 10 GbE Base-T, 3× HDMI |
Battery | 6× Hot-swappable packs (81 Wh) | Certifications | MIL-STD-810G, MIL-STD-901E, MIL-STD-461F |
Storage | Configurable SSD (RAID options available) | Accessories | Ruggedized transit case included |
Drop Resistance | MIL-STD-810G compliant (shock, vibration) | Customization | Military-grade connectors, I/O customization |
Dimensions & Weight | 153 × 437 × 335 mm, 15 kg with batteries | Warranty | 24 months (extendable) |
Technical Specification
Product | NotePAC II Pro V |
---|---|
Chassis Color | Light Gray |
Display | 2x 17.3" FHD 1920x1080 Upgradable options: UHD 3840x2160, 60Hz Display, 2K, 144Hz displays |
CPU | Intel® Xeon® D-2183IT |
Memory | 16GB DDR5 RAM Upgradable to 32GB+ |
Graphics Card | NVIDIA Quadro P4000 |
OS Drive | 512GB OS Drive |
Storage | 1TB Data Drive (Total of 4 removable hard drive cages) |
Ports | Quad LAN with Intel® Ethernet Controller I350-AM4, Dual LAN with 10G SFP+ LAN via SoC, Dual LAN with 10Gbase-T, CAC reader, 3x HDMI external clone |
Power Supply | 600W, 100~240 VAC External AC-DC Adapter |
Optional Addons | 6x 10.8V, 7,500mAh, 81Wh Batteries |
Input | 19VDC/31.6A |
Output | 19VDC |
Charger Specs | Charging voltage: 19V ± 1V, Charging current: 13A ± 0.5A |
Card Reader | CAC Reader |
Dimensions | Chassis dimensions: Height: 6.0" (153mm) Width: 17.2" (437mm) Depth: 13.2" (335mm) Battery dimensions: Height: 12.67" (322mm) Width: 17.04" (433mm) Depth: 2.71" (69mm) |
Weight | 26.5lbs (12kg) Optional battery pack: Additional 6.6lbs (3kg) |
Expansion Slots | 2 slots |
Keyboard & Mouse | Backlit keyboard, available in a variety of languages |
Accessories | USB Cable, Power Cable, DVD Driver |
Quality | ISO 9001 |
Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
