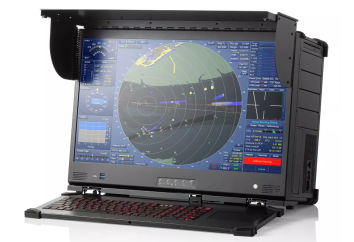

MegaPAC L1
- 2x LCD 23.8" FHD or 4K
- 7 full lenght expansions slots
- Intel Core or AMD Ryzen
- SSD up to 150TB
Description
The MegaPAC L1 product is a robust portable computer built using all aluminum sheet metal to provide tough, go-anywhere unit suitable for tough environments and mobile applications. With the 23”, HD LCD display and 7-expansion slots design, the MegaPAC L1 can easily fulfill requirement for digital media related applications in the broadcasting market. The MegaPAC L1 can also be configured with many special add-on cards for your unique applications. The integrated visor-shade optimizes viewing when ambient light or sunlight has become distracting. Optional touch screen allows MegaPAC L1 to operate without keyboard for quicker operations.
Every unit comes equipped with cooling fans and easy access to its expansion slots for immediate system upgrade or maintenance. With its simplistic design and rugged construction, the MegaPAC L1 is the most durable and versatile portable platform for your applications.
Technical Specification
- Dane podstawowe
| DISPLAY | 23.8" UHD 3840X2160 - 350 NITS (OPTIONAL: 800 NITS - 650 NITS WITH TOUCHSCREEN), 23.8" FULL HD 1920X1080 - 250 NITS (OPTIONAL: 1000 NITS - 800 NITS WITH TOUCHSCREEN), 24" WUXGA 1920X1200 - 250 NITS (OPTIONAL: 1000 NITS) |
|---|---|
| CPU | LATEST SINGLE/DUAL INTEL® XEON, INTEL® CORE, AMD RYZEN™, OR AMD EPYC™ |
| MEMORY | UP TO 1TB DDR4 RAM |
| GRAPHICS CARD | INTEGRATED HD GRAPHIC CONTROLLER OR APPLICATION-SPECIFIC GRAPHIC CONTROLLER |
| EXPANSION SLOTS | UP TO 7 |
| STORAGE | UP TO 150TB (REMOVABLE OPTION AVAILABLE) |
| POWER SUPPLY | 850W 100/240VAC, 50/60HZ AUTO-SWITCHING 80 PLUS GOLD RATED OPTIONAL: 1000W OR 1200W 100/240VAC, 50/60HZ AUTO-SWITCHING 80 PLUS PLATINUM RATED (WITH 10 YEAR WARRANTY) OPTIONAL: 28VDC POWER SUPPLY |
| DIMENSIONS | HEIGHT: 15.12" (384MM) WIDTH: 23.11" (587MM) DEPTH: 9.02" (229MM) |
| WEIGHT | ~40 LBS (18KG) |
| TOUCH OPTION | TOUCHSCREEN OPTIONAL |
| WIFI / BLUETOOTH | WIFI AND BLUETOOTH OPTIONAL |
| RAID | RAID 0/1/5/10 |
| KEYBOARD & MOUSE | 105-KEY KEYBOARD WITH INTEGRATED TOUCHPAD. AVAILABLE IN A VARIETY OF LANGUAGES. |
| TRANSIT CASE | INCLUDES PADDED ROLLING TRANSIT CASE OPTIONAL :HARDENED CASE AVAILABLE |
| QUALITY | ISO 9001 |
| CUSTOMIZATION | MILITARY CONNECTORS, CUSTOM I/O, AND MORE. |
